Butt Weld Pipe Fittings

Garg Steel Tube Company manufactures high-quality Butt Weld Pipe Fittings designed for smooth flow, high strength, and permanent welded connections. These fittings are widely used in oil & gas, petrochemical, power, and industrial piping systems where reliability and pressure resistance are critical.

Request Quote

Types of Butt Weld Fittings

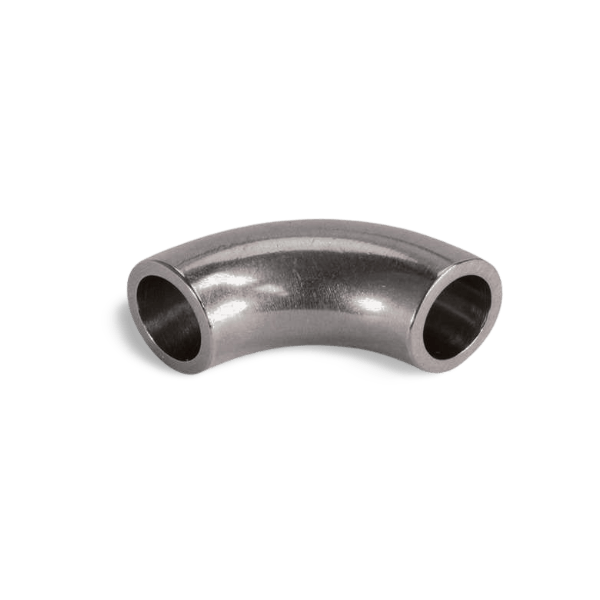

Butt Weld Elbow

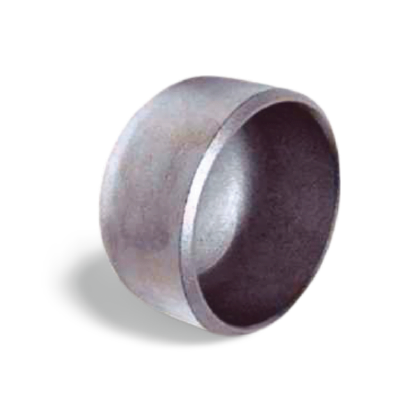

Butt Weld Cap

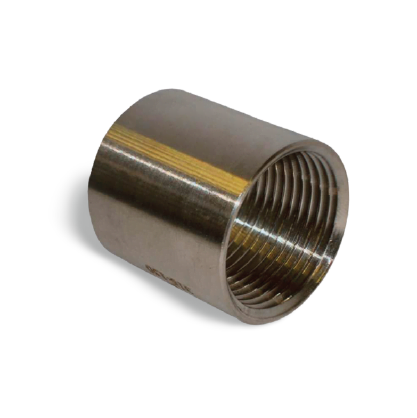

Butt Weld Coupling

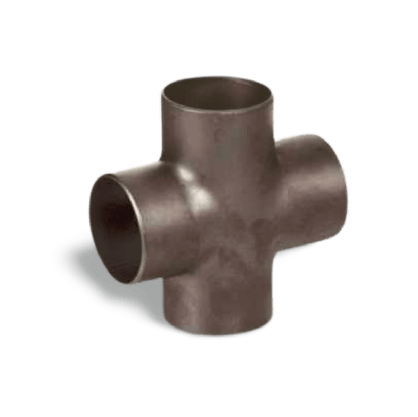

Butt Weld Cross

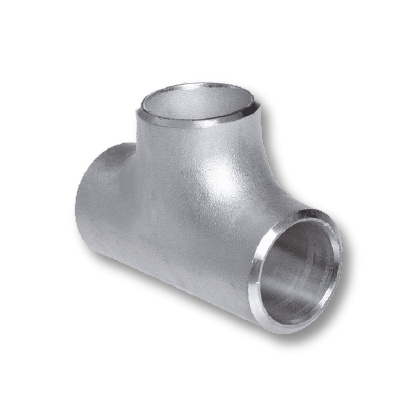

Butt Weld Equal Tee

Butt Weld Nipple

Butt Weld Reducer Tee

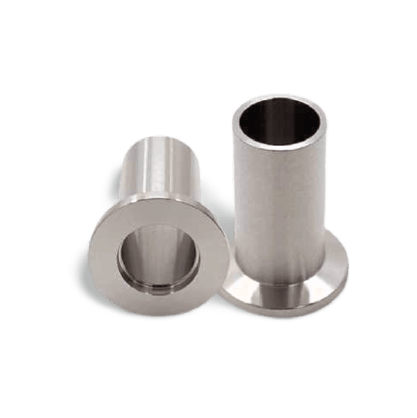

Butt Weld Stub Ends

Standard Specifications of Butt Weld Fittings

Dimensions	ANSI ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
Size	1/2″ (15 NB) to 48″ (1200NB)
Type	Seamless / ERW / Welded / Fabricated
DIN	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN	EN10253-1, EN10253-2
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form	End Caps, Pipe Caps, Pipe End Caps.

Material & Grades of Butt Weld Fittings

Stainless Steel

ASTM A-479, A-182, 304, 304L,304H,304S, 316, 316L,316 Ti, 316H, 309, 310, 310S, 317L, 321, 347, 409, 410, 420, 430, 440, 446, 904L. etc.

Duplex & Super Duplex Steel

S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 & ASTM / ASME A/SA 182, A240 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel

ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)

Low Temperature Carbon Steel

ASTM A350, LF2, LF3

Alloy Steel

AASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Nickel Alloy

Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)
